Arch Information

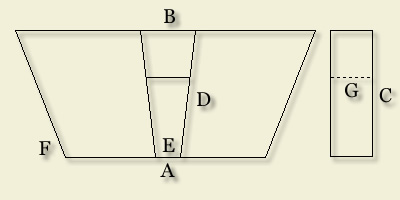

Flat Gauged Arch

A = Arch Opening
B = Top of Arch
C = Arch Height
D = Joint Size
E = Rise of Arch
F = Angle of Skew
G = Arch Depth

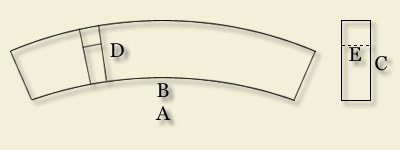

Segmental Arch

A = Arch Opening
B = Rise of Arch
C = Arch Height
D = Joint Size
E = Arch Depth

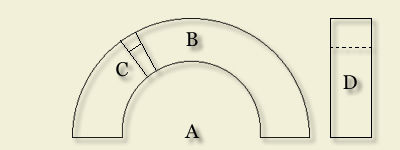

Semi-Circular Arch

A = Arch Opening
B = Arch Height
C = Joint Size
D = Arch Depth

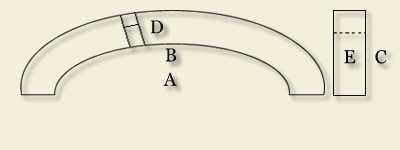

Elliptical Arch

A = Arch Opening
B = Rise of Arch
C = Arch Height
D = Joint Size
E = Arch Depth

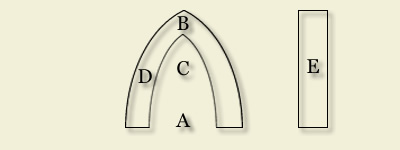

Gothic Arch

A = Arch Opening
B = Arch Height
C = Rise of Arch
D = Joint Size
E = Arch Depth


Dimensions measured in - mm cm or inches

Brick Type -

Company Name:
Contact Name:
Site Address Line 1:
Site Address Line 2:
Site Address Line 3:
Site Address Line 4:
Site Address Line 5:
Telephone:
Email Address:
